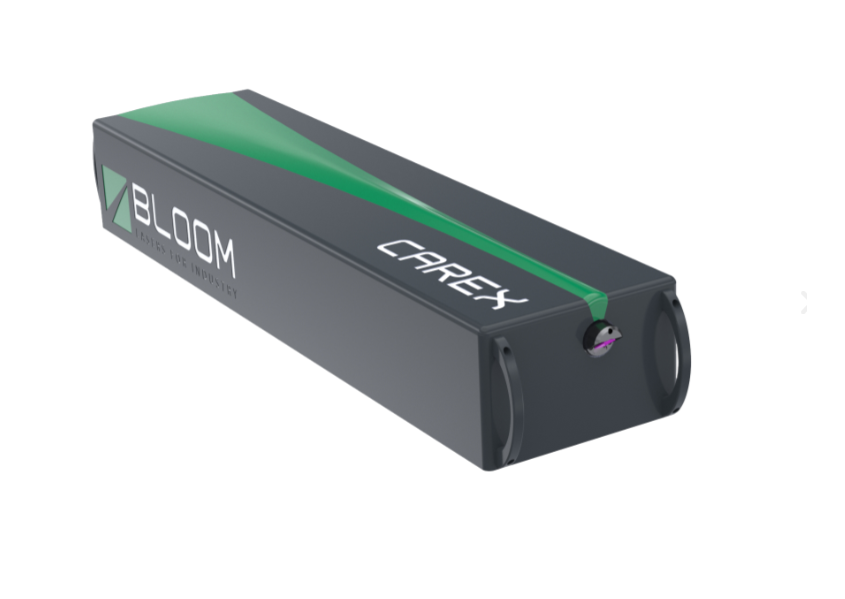

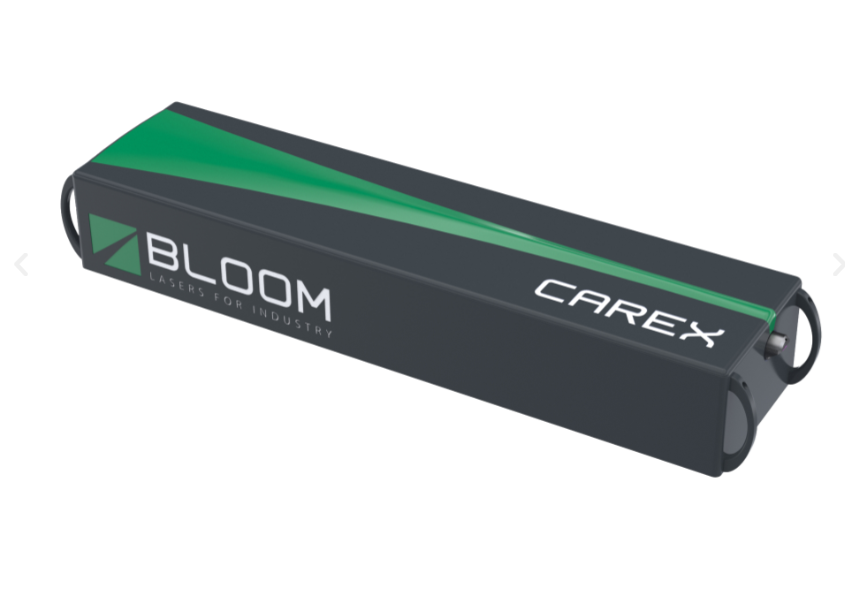

CAREX

HIGH POWER NANOSECOND LASER WITH PROGRAMMABLE PULSES , 343 NM AND 515 NM

카탈로그 다운로드

CAREX, the flexible nanosecond UV fiber laser, delivers fully programmable pulses combining high power and high pulse repetition rates. It is especially designed for high precision micro-processing.

CAREX is the perfect laser source for throughput agility demanding process all with a disruptive cost of ownership. CAREX is also the supportive laser source for application laboratory looking for programmable pulses and industrial grade power level.

Key Features

  • High power
  • 30 W up to 400 kHz @ 343 nm
  • 50 W up to 400 kHz @ 515 nm
  • High Pulse Repetition Rate up to 500 kHz
  • Adjustable pulse duration from 2 ns up to 20 ns
  • Full pulse shaping (1 ns resolution)
  • Excellent beam quality M² < 1.2 up to 500 kHz
  • High peak power
  • Up to 40 kW @ 343 nm
  • Up to 60 kW @ 515 nm
  • Field proven technology
  • HALT designed / HASS Certified

Applications

  • Flex PCB via drilling
  • HDI (High Density Interconnect)
  • ITO patterning
  • Wafer scribing and debonding
  • Glass processing
  • CFRP processing
  • Battery processing
  • Ceramic scribing, cutting and drilling

Specifications
